X-ray tunnel size guide

From handbags to full freight pallets — what fits through each tunnel size, smallest to largest. Every opening drawn to scale below, exactly as in our downloadable guide.

Download the PDF guide Ask us what you need

Drawn to scale

Compare the tunnels

Widths and heights below are proportional to the real tunnel openings. Hover or tap a tunnel for details.

HS 5030504×320

HS 5536550×320

6030di620×330

HS 6040610×410

HS 6242620×425

HS 8065810×660

HS 10101010×1010

1451801470×1820

HS 18181820×1820

Size by size

What each tunnel typically screens

Tunnel opening	Machines	Typically screens
504 × 320 mm	HS 5030 EVO2	Handbags, clutch bags, laptop sleeves, small toiletry bags, tablets & cameras. Fits through a standard 825 mm door frame — ideal for receptions and small offices.
550 × 320 mm	HS 5536 EVO2	Handbags, laptop bags, small backpacks, parcels, shoe boxes — a slightly wider aperture for limited-space applications.
620 × 330 mm	HI-SCAN 6030di	Mobile checkpoint scanner on castors for prisons, courthouses, embassies, universities and industrial plants.
610 × 410 mm	HS 6040 EVO2 / HI-SCAN 6040i	The industry's most common checkpoint size — rucksacks, briefcases, cabin bags, courier parcels. Banks, hotels, airports, casinos and government buildings worldwide.
620 × 425 mm	HS 6242 EVO2	Larger rucksacks, gym & duffel bags, boxed parcels — extra headroom for train stations and busy public buildings.
810 × 660 mm	HS 8065 SV/DV EVO2	Hard-shell cabin & hold suitcases, medium boxes, folded golf bags, crates — the step up into hold-baggage territory.
1010 × 1010 mm	HS 1010 EVO2 / HI-SCAN 100100	Large hold suitcases, oversized boxes, small crates, wheelchairs & buggies — preferred by freight forwarders, couriers and customs.
1470 × 1820 mm	HI-SCAN 145180-2is	Air cargo pallets, freight skids, large crates, drums. Dual 160 kV generators, rated to 5000 kg, meets TSA skid size.
1810–1820 × 1810–1820 mm	HS 1818 DV / HI-SCAN 180180	Full freight pallets, vehicle wheels, drums, bulk cargo — up to 5000 kg conveyor load and 60–80 mm steel penetration for ports, customs and freight terminals.

Machine photographs and specifications sourced from manufacturer datasheets. Need a size we haven't listed? We source and support the full market — ask us.

Rules of thumb

Choosing in four steps

Measure your largest item — the tunnel must clear its width and height, laid in its natural scanning position.
Buy the class, not the inch — the 610 × 410 mm class is the checkpoint default for a reason; go bigger only if your items demand it.
Check the route in — doorways, lifts and corridors decide more purchases than specs do. We survey free of charge.
Think throughput — dual-view (DV) machines image two angles in one pass, cutting re-scans at busy checkpoints.

Get sizing advice

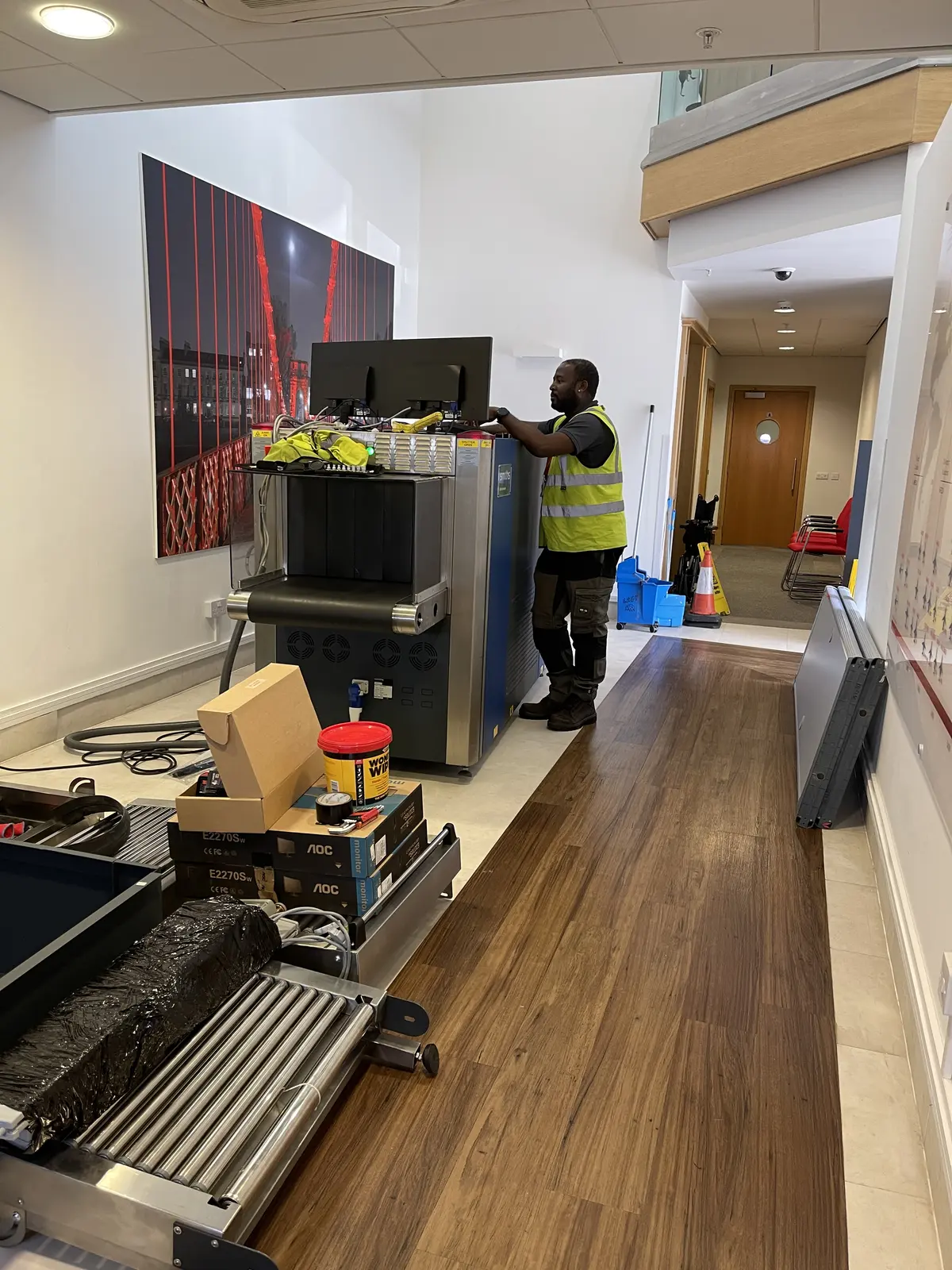

RedteQ engineers manoeuvring an X-ray machine into position during installation — The route in matters as much as the tunnel — our engineers survey before every install.

Still unsure? That's what we're for.

Send us a photo of what you need to screen and we'll size it for you — usually the same day.
